Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test

Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test
Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test
Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test

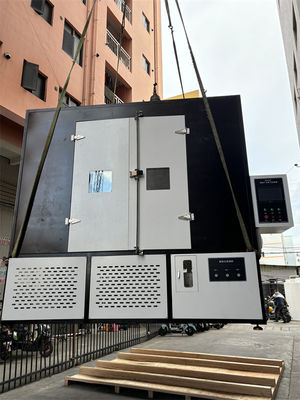

Gambar besar :  Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test

Detail produk:
Tempat asal: Cina
Nama merek: DAXIAN
Sertifikasi: IEC62730-2024、IECIEC62217-2012
Nomor model: DX8428
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 1 set
Harga: Dapat dinegosiasikan
Kemasan rincian: Kasing kayu
Waktu pengiriman: 20 hari kerja
Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 3 set per bulan
Kontak

Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test

Deskripsi
Nama mesin: Insulator 5000 jam mesin uji stres ganda Standar: IEC62730-2024 、 IECIEC62217-2012
Sampel uji: HV Polymer Isolator Bahan: Dicetak
Berat: 2 ton Dimensi: 3.1* 3.2* 3.6m
Waktu pengiriman: 25 hari kerja Jaminan: 24 bulan
Kekuatan: 45kw MEMASOK: 380v
Menyoroti:

Lab Testing Machine 5000h insulator tester

,

Lab Testing Machine IEC 62730-2024 compliant

,

Lab Testing Machine salt rain test



5000h Insulator Testing Machine



Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test 0

Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test 1

Remark :
The IEC 62730 standard is an international standard for multi stress aging testing of insulators used in photovoltaic (PV) systems, primarily evaluating the long-term durability of insulation materials in complex outdoor environments. The IEC 62730 Insulator Multi Stress Testing Machine is a testing device specifically designed to simulate the superposition of various environmental stresses and accelerate the aging of insulators.

Product name:
Technical Specifications for the 5000 - hour Multiple Stress Test Setup in accordance with IEC 62730:2024
IEC 62730:2024
In this document, the technical requirements of the 5000h multiple stress test bench are given according to IEC 62730:2024.
Test Procedur
The test shall be carried out in a moisture sealed corrosion-proof chamber, the volume of which shall not exceed 20 m3.
Test Conditions
The cycle of stresses applied to the insulators and repeated for a period of 5 000 h is shown in Figure 3. The cycle is designed
so that the test specimens are also subjected to the effects of temperature variation and condensation .
Solar Simulation
The simulated solar irradiation is provided by a xenon arc lamp with a nominal output of 6500 W and equipped with 2 boron silicate
glass filters (see example in Figure 5) . The distance between the xenon lamp and test specimens is approximately 480 mm.

A new lamp and filters shall be used at the beginning of each test. The filters and , if necessary, the lamp shall be replaced
during the test according to the lamp manufacturer's recommendations .
Artificial Rain
The artificial rain shall be provided by nozzles mounted above the test specimens and outside their perimeter (see Figure 4 ). The
average precipitation rate shall be in accordance with IEC 60060-1 . Water of a minimum resistivity of 85 nm shall be used. Each
of the test specimens is sprayed individually.
Dry Heat
The chamber is heated up to 50 °C ± 2 °C; the time far the temperature to rise is 15 min as a maximum.

NOTE it is recommended to heat and insulate the walls of the chamber.
Humidity
Nominal relative humidity: RH = 95 % ± 3 % at 50 °C.

DX8428 Insulator Multi Stress Testing Machine.pdf





Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test 2





Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test 2


Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test 4

Lab Testing Machine 5000h Insulator Testing Apparatus IEC 62730-2024 Salt And Rain Test 5
